## Introduction



# **Prostate: Background (Story)**

It is universally and scientifically accepted that prostate cancer occurs in asymptomatic men or as an incidental finding later in life. Prostate cancer is the second leading cause of male cancer deaths. About 250,000 cases occur in the USA alone. Until now we have used the digital rectal screening exam and the serum PSA (prostate-specific antigen). Discrepancies as to how to use these tools have occurred domestically and internationally. This makes the decision regarding definitive treatments (e.g. nothing, surgery, radiation, hormone therapy, chemotherapy) all challenging.

Distinguishing which cancers are aggressive, and which are nonaggressive, has relied previously on sonographic guided biopsy using Trans Rectal Ultrasonography (TRUS). The Gleason score has been used pathologically after biopsy to determine which cancers have aggressive potential (Gleason 6 or greater, more aggressive).

## **Why MRI?**

### **ADVANTAGES**

- A major advantage, and real value, of MRI is in visualizing tumors that involve the distal anteroapical prostate. This is difficult to see with other modalities, and more challenging to reach surgically.

### **DISADVANTAGES**

- Bleeding after biopsy can obscure a tumor, but a tumor often pushes blood out of the way (i.e. “tumor exclusion sign”) so blood circumscribes the tumor.
- Artifacts can be caused by air and stool in the rectum. Therefore, preparation for exam is key (see protocols at end of this section).
- Low signal-to-noise ratio (SNR) on diffusion-weighted imaging (DWI) with high b-value diffusion imaging (over 1,000). However, aggressive tumors “stand out” while benign or nonaggressive tissue “fades away” as b-value goes up.
- Anything above a 3mm slice of T2 weighted imaging for T staging is too thick.
- 3D MRI provides very thin slices (1mm or less), but tissue contrast is slightly lower than 2D.
- Lower grades of tumor (i.e. non-aggressive) are often not seen on MRI.
- Tumors 5mm or less may not be seen without doing dynamic contrast-enhanced (DCE) MRI (e.g. injecting contrast).
- Hormone therapy (e.g. dutasteride) decreases utility of DCE MRI.
- It is unclear what minoxidil therapy for baldness or hair loss does to the appearance of an MRI exam.

### **INDICATIONS**

- Benign Prostatic Hypertrophy (BPH)
- Prostate-Specific Antigen (PSA)

### **PEARLS OF MRI**

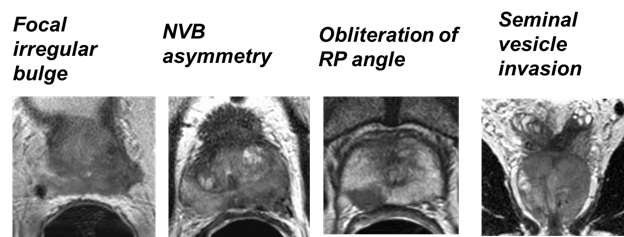

- Various signs have been proposed for the diagnosis of extracapsular extension (stage T3a)
- Therefore, invasion is certain when the neurovascular bundle is absent in its usually identifiable portion.  In contrast, invasion cannot be excluded in the tracts where the neurovascular bundle is not normally visualized.
- DCE MRI plays a much more important role in breast MR than it does in the prostate MR, at this time.
- DWI is more important in the prostate than breast.

### **EXAM PREPARATION AND PROTOCOLS**

*Preparation for the Exam*

1. Nothing by mouth (i.e. nil per os, NPO) 3 Hours; Soft Diet 24 hours
2. Screen for Claustrophobia
3. Feet First
4. Fleets 1-3 Hours Before Arrival Enema
5. Manual Cleansing in Restroom Right Before Exam
6. Bentyl 10 mg by mouth (i.e. per os, PO), optional

*Protocol at 1.5 Tesla for Prostate*

(see below but add 3D if mapping with TRUS for biopsy is under consideration)

1. T1-weighted image (T1W1) axial 2D or 3D
2. 3D turbo-spin-echo (TSE) T2WI sagittal or axial (isotropic) only for mapping programs
3. Multiplanar reconstruction (MPR) of < 1.5 mm slice thickness with 50% overlap
4. DCE-MRI axial
5. Gd-DTPA equilibrium enhanced 3D turbo-field-echo (TFE) axial

*Imaging Introduction*

A five-point scoring system has been developed based on a combination of mpMRI (multi-parametric MRI) findings that consist of:

- T2 hypointense mass-type lesion
- Diffusion-weighted imaging (DWI) and the severity of restriction (greater restriction = higher signal)
- The ADC parametric map which is simply a pixel by pixel display of micromolecular motion or lack thereof (more restriction = slower velocity = lower signal)
- Dynamic contrast enhanced MRI (DCE-MRI) which demonstrates enhancement, enhancement peak or intensity; speed of enhancement, and enhancement washout

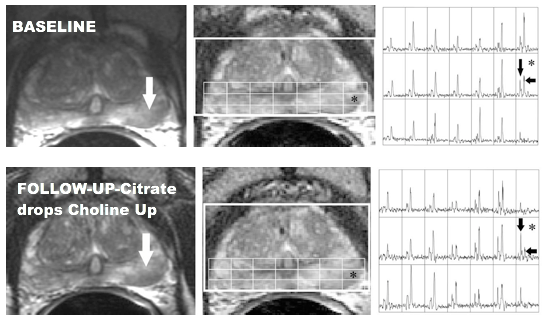

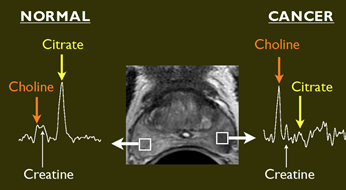

- +/- Spectroscopy (little used routinely)

*Pearls Regarding Technique*

- Avoid reliance on contrast enhancement (e.g. DCE MRI) when a patient is on hormone therapy.
- Patients on dutasteride should be off for at least two cycles before DCE MRI.
- Diffusion imaging must include a series of b-values. The b-value reflects the intensity and sensitivity of diffusion restriction, and is like the torque of a car’s engine. The higher the b-value, the more sensitive the sequence is to diffusion restriction. YOU MUST have a b-value of at least 1,400. A typical series of b-values would be 0, 50 150, 800, and 1,600.







## Prostate: Imaging

*Sample Cardiac Coil Non-endorectal Prostate Study*

## ![](https://info.medality.com/hs-fs/hubfs/image-7.png?width=430&name=image-7.png)

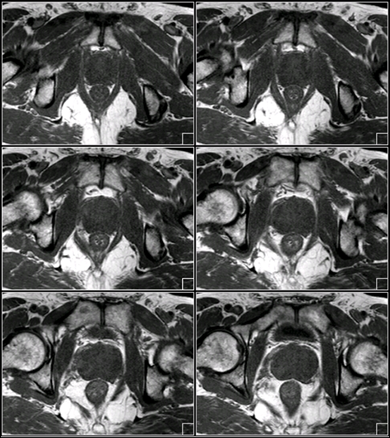

**T1WI: TSE T1w TSE; FOV = 420mm; 512 matrix; 1.0 x 1.2 mm pixel size; 38 slices of 3.5 mm; SENSE FACTOR 2; TR = 600; TE = 8; TF = 4; Scantime 1:21**

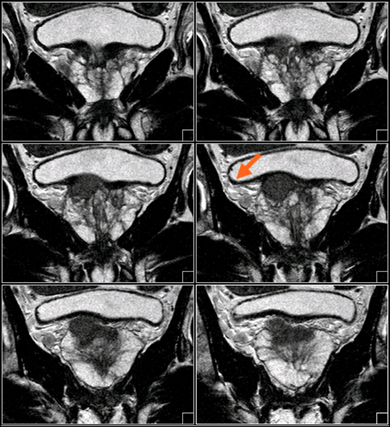

**![](https://info.medality.com/hs-fs/hubfs/image-8.png?width=431&name=image-8.png)**

**Coronal T2WI TSE/FSE: TSE T2w TSE; FOV = 200 mm; 512 matrix; 0.5 x 0.7 mm pixel size; 24 slices of 3.5 mm;TR = 3200; TE =130; TF = 24; Scantime 3:48**



**![](https://info.medality.com/hs-fs/hubfs/image-9.png?width=380&name=image-9.png)**

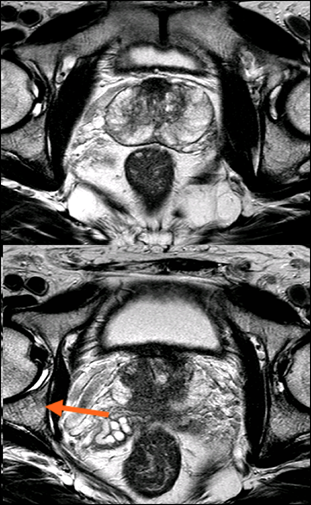

**Axial T2WI FSE/TSE: 2 slices shown: FOV = 200 mm; 512 matrix; 0.6 x 0.7 mm pixel size; 24 slices of 3.5 mm; TR = 3200; TE = 130; TF = 24; Scantime 4:26****

**



**![](https://info.medality.com/hs-fs/hubfs/image-10.png?width=300&name=image-10.png)**

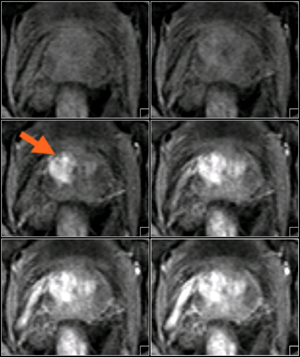

**Dynamic Contrast-enhanced MRI DCE MRI: Images acquired from the first 6 dynamic 3D acquisitions; 3D T1 TFE with SPIR; FOV = 420 mm; 256 matrix; 1.6 x 1.6 mm pixel size; 30 slices of 3.5 mm; SENSE FACTOR 2;TR = 4.8;TE = 2.4; FA = 10; Scantime 13.5s/3D**



## ![](https://info.medality.com/hs-fs/hubfs/image-11.png?width=549&name=image-11.png) ![](https://info.medality.com/hs-fs/hubfs/image-12.png?width=557&name=image-12.png)

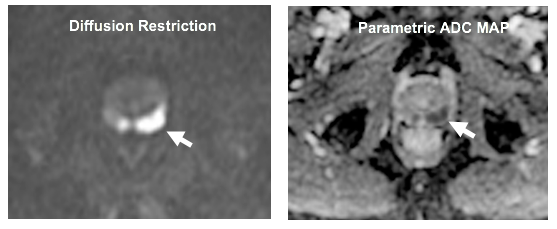

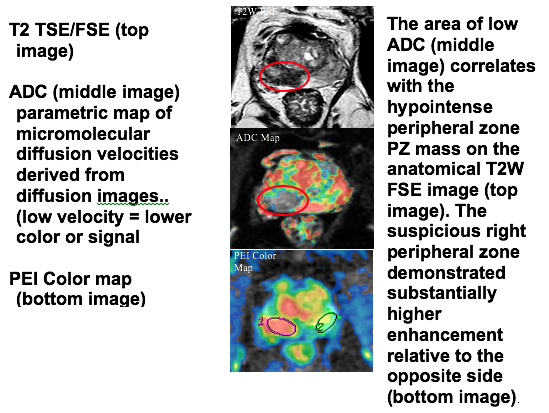

Diffusion Imaging should be performed on all prostate cancer patients undergoing MRI using multiple b-values. The highest b-value should exceed 1,200-1,400. Cancers diffusion restrict, therefore, they get brighter as the b-value is increased (and darker on the ADC map). Generalized causes of diffusion restriction include:

- Highly cellular objects with increased nuclear to cytoplasmic ratio
- High viscosity
- Stiffness in tight spaces
- Cell death with trapped intracellular fluid
- Tissue vacuolization.

Thus, the causes of false positive or negative diffusion MRI in prostate cancer include:

- Spatial resolution often limited to 1 cm tumors
- Mucinous tumors do NOT restrict
- Benign nodules in Central Zone (CZ) and Peripheral Zone (PZ) can restrict since cells are tightly packed

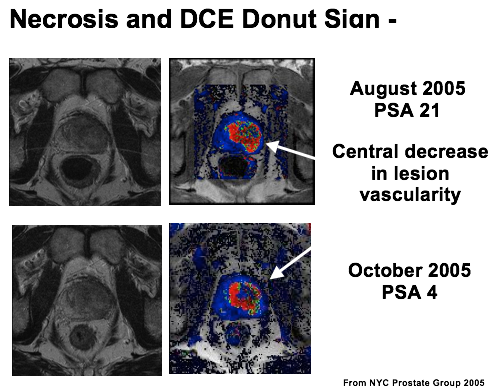

- Pitfall: Abscess “Vanilla donut” restricts inside; Tumor “Chocolate donut” restricts peripherally more than centrally; Any cytotoxic necrotic edema may be positive for diffusion restriction

## ![](https://info.medality.com/hs-fs/hubfs/image-13.png?width=492&name=image-13.png)

*Opinion Position Statement Regarding Field Strength and Endorectal Coil Imaging*
“In the past, 3.0 Tesla MR system was recommended for examination of prostate cancer because of higher SNR, spectroscopy and it enables high quality imaging within a short time without the use of an endorectal coil.

This is no longer supported by data or practitioners who are active in the field with proper prep and newer technology. Spectroscopy has, for now, become a research tool, coil technology is superior at 1.5 T, artifacts are fewer, isotropic 3D mapping TSE/ FSE is excellent at 1.5 T. Finally, technology has evolved such that endorectal coil imaging is no longer needed for a quality exam and is not viewed favorably by patients.”

*Screening Options for Prostate MRI: Position Statement for Consideration*
Axial 2D T2 FSE + Diffusion + DCE MRI is a 20 minute screening exam and very economical for the patient.

Advantages:

- Detects aggressive cancer
- Fast
- Not expensive
- No cavitary coils needed

This has been referred to as “Abbreviated Biparametric Prostate MR”

*Kuhl CK. Et al. Radiology 285(2) p. 483*

In this long term study by a respected expert in Germany on DCE MRI the detection rate for “clinically significant” prostate lesions was equal to “full” parametric MRI.

In her study of over 500 patients, gadolinium enhanced DCE MRI is also eliminated. DCE MRI is only used as a major criterion to “characterize lesion” in PZ (peripheral zone lesions), and this eliminates the need for IV access and saves time. Total scan time is under 10 minutes. Additionally in this study, ALL PI-RAD 3s were biopsied (which would normally not be the case). 93.5% were benign.**
****
**Disadvantages: If an aggressive lesion is found, the patient must return for diagnostic 3 planar MRI with 2D or 3D technique for purposes of TRUS / MRI guided biopsy. T staging with the abbreviated study is less accurate. Localization in the gland requires more expertise. Still, detection of aggressive significant cancers is equal between the two techniques.



## Prostate: Anatomy

# **Functionality**

The main function of the prostate is to secrete prostatic fluid. Prostatic fluid is a key component of semen, and during ejaculation, prostate muscles contribute to propulsion of the semen through the urethra.

## **Geographic synopsis (Location)**

From the base of the bladder to the membranous urethra, the prostate envelopes the prostatic urethra. Within the lesser pelvis, the prostate is located behind the inferior border of the symphysis pubis and pubic arch, and anterior to the rectal ampulla.

## **Zonal Anatomy**

Prostate is divided into three major compartments:

1. Peripheral zone:

- 70% of volume in young males
- Surrounds the entire central zone posterolaterally and extends anteriorly to the fibromuscular stroma
- High in water content = T2 bright
- 75% of prostate cancers arise in peripheral zone

1. Central zone:

- In young males, the central zone makes up 25% of the prostate, respectively
- Prostate is anterior to the rectal wall
- Bladder is anterosuperior to the prostate
- Seminal vesicles are posterosuperior
- Neurovascular bundles
- Surgical capsule is the plane between the central and peripheral zone
- Fibromuscular “capsule” of prostate
- Muscular Stroma forms an inverted “v” in the posterior prostate
- Fibromuscular Stroma, anterior prostate

1. Transition zone:

- In young males, the transitional zone makes up 5% of the prostate, respectively
- As men get older, the transitional zone becomes more predominant (benign prostatic hypertrophy, BPH)



**![](https://info.medality.com/hs-fs/hubfs/image-14.png?width=600&name=image-14.png)**

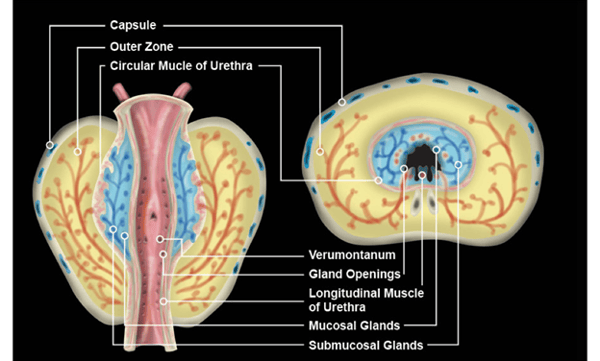

**Coronal and axial, planar**

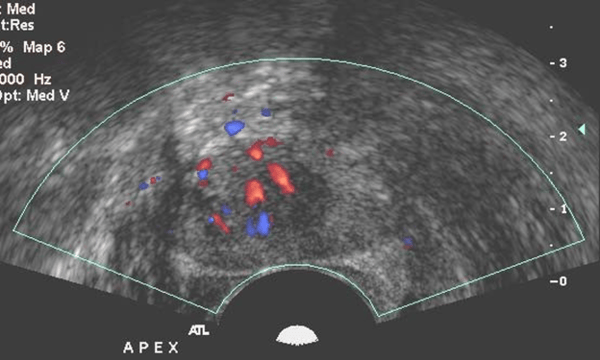

## ![](https://info.medality.com/hs-fs/hubfs/image-15.png?width=600&name=image-15.png)**Sono with Doppler, hypervascularity favors tumor- 85% of aggressive tumors Gleason 8, 9, 10 have hypervascularity**** ** ![](https://info.medality.com/hs-fs/hubfs/image-16.png?width=600&name=image-16.png)

**Coronal surface rendered front view**







**![](https://info.medality.com/hs-fs/hubfs/image-17.png?width=300&name=image-17.png)**

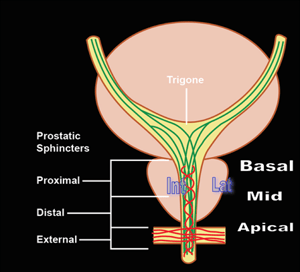

**Coronal anatomic Descriptors:**

**Base = Proximal; Distal = Apical**

**Mid is divided into intermediate or int. (closer to the midline) and lat. or more lateral**









**![](https://info.medality.com/hs-fs/hubfs/image-18.png?width=564&name=image-18.png)**

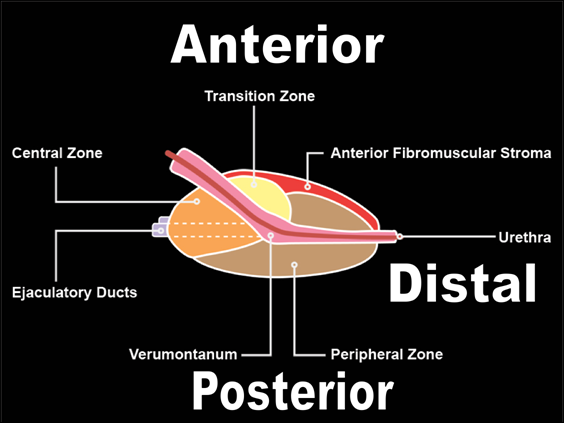

****Sagittal****





## **Anatomy with Age**

Note: All ages are approximate

**** ****

**Birth**

- System of ducts in stroma
- End buds of ducts are follicles

**** ****

**Birth to 12-14 years**

- Stable; no real change

**** ****

**12-14 to 17-18 years**

- Puberty; maturation stage
- Doubles in size (at least) due to follicular development, end-buds on ducts, and ductal branch modification

**** ****

**17-18 years to 30 years**

- Multi-layered squamous or cuboidal epithelium transitions into pseudostratified epithelium (i.e. basal, exocrine secretory, and neuroendocrine)
- Exocrine secretory cells generate acid phosphatase, prostate-specific antigen (PSA), and *B*-microseminoprotein

**** ****

**30 to 39 years**

- Epithelial cells undergo irregular multiplication into the lumen of the follicles

**** ****

**40 to 44 years**

- Stable; no real change

**** ****

**45 to 50 years**

- Follicular outlines become more regular and amyloid bodies increase, resulting in involution of the prostate

**** ****

**After 50 years**

- Benign Prostatic Hyperplasia (BPH) takes place
- BPH is inevitable, but may not be symptomatic

**** ****

# **Dysfunction**

## **Prostate cancer**

### **WHAT CAN YOU DETERMINE WITH MRI?**

- Extracapsular extension (stage T3A) (78% sensitive, 96% specific)
- Involvement of the neurovascular bundle
- Seminal vesicle invasion (stage T3B) (88% sensitive, 98% specific)
- Invasion into adjacent structures (bladder to rectum)
- Local lymph node involvement
- T3 lesions have a worse prognosis and more likely to recur after treatment or surgery

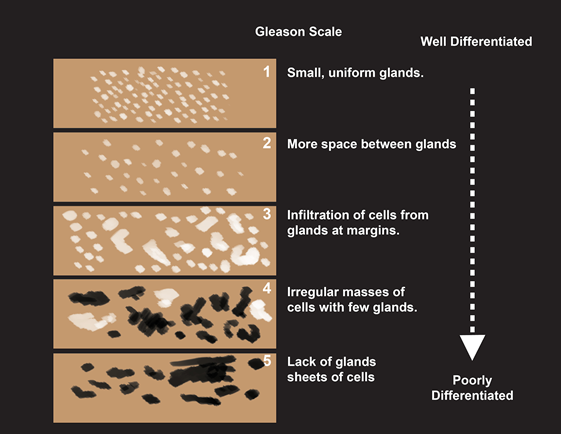

- MRI may correlate with Gleason grade







## Prostate: Scoring

# **PI-RADS v.2 Scoring**

[Click here to see a case example of PI-RADS 1](https://info.medality.com/prostate-mri-guide#PI-RADS1)

[Click here to see a case example of PI-RADS 2](https://info.medality.com/prostate-mri-guide#PI-RADS2)

<https://info.medality.com/prostate-mri-guide#PI-RADS2>[Click here to see a case example of PI-RADS 3](https://info.medality.com/prostate-mri-guide#PI-RADS3)

<https://info.medality.com/prostate-mri-guide#PI-RADS3>[Click here to see a case example of PI-RADS 4](https://info.medality.com/prostate-mri-guide#PI-RADS4)

[Click here to see a case example of PI-RADS 5](https://info.medality.com/prostate-mri-guide#PI-RADS5)

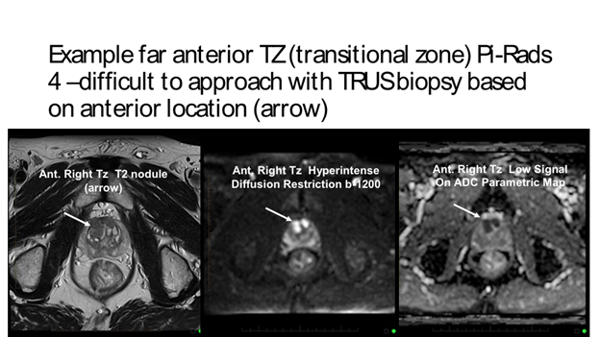

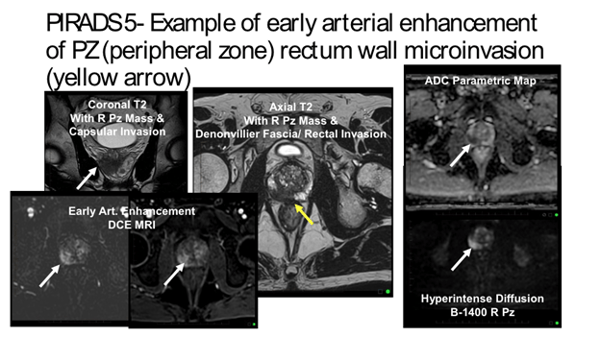

PI-RADS utilizes a 5-point scale based on the probability that a combination of mpMRI findings on T2W, DWI, and Dynamic Contrast Enhanced (DCE) images correlate with clinically significant prostate cancer.

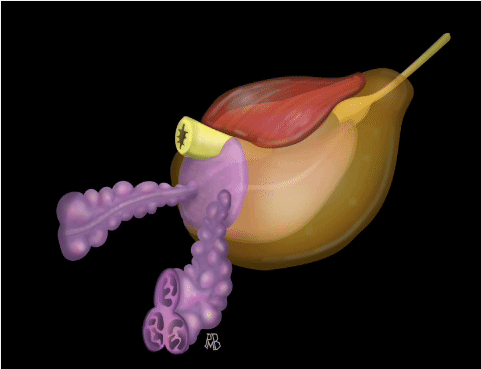

## ![](https://info.medality.com/hs-fs/hubfs/image-19.png?width=481&name=image-19.png) From: Pomeranz SJ, Bohart Case Review Series (replace with PI-RADS diagram)

![](https://info.medality.com/hs-fs/hubfs/image-20.png?width=600&name=image-20.png)



![](https://info.medality.com/hs-fs/hubfs/image-21.png?width=600&name=image-21.png)

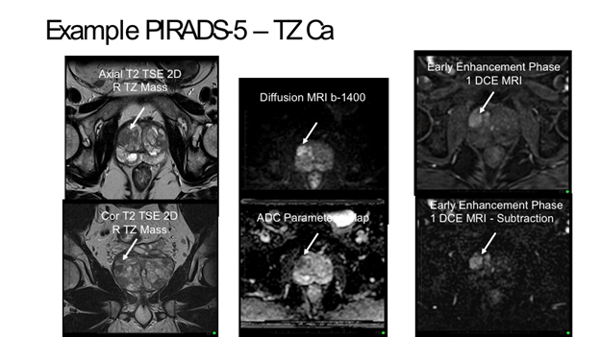

![](https://info.medality.com/hs-fs/hubfs/image-22.png?width=600&name=image-22.png)

PI-RADS v2 has flaws, i.e. a TZ lesion can be moved from a 2 to 4 category with slight changes in T2 morphology. The following are links to some publications about this:

[https://pubs.rsna.org/doi/pdf/10.1148/rg.313105139](https://pubs.rsna.org/doi/pdf/10.1148/rg.313105139)

[https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4656245/pdf/13244_2015_Article_426.pdf](https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4656245/pdf/13244_2015_Article_426.pdf)

[https://link.springer.com/content/pdf/10.1007%2Fs13244-017-0578-x.pdf](https://link.springer.com/content/pdf/10.1007%2Fs13244-017-0578-x.pdf)



PROMIS study: For clinically significant cancer, MP-MRI was more sensitive (93%) than TRUS-biopsy (48%). 37% negative TRUS still had clinically significant Ca. MR can avoid biopsy in 27% of men with high PSA.

Anatomy PEARL: Central zone tumours are rare, hard to detect as CZ normally is hypo on T2 and restrict. Symmetry is key (18% CZ is asymmetrical), Also CZ does not extend below veromontanum!

How to do it: Mention up to 4 most suspicious lesions in report, and include index lesion. Index lesion is Highest PI-RADS >> EPE (Extraprostatic extension) >> Size. Lesion size is largest axial dimension measurement.





## Prostate: Assessment

# **PI-RADS Assessment Categories**

- PI-RADS 1 – Very low (clinically significant cancer is highly unlikely to be present)
- PI-RADS 2 – Low (clinically significant cancer is unlikely to be present)
- PI-RADS 3 – Intermediate (the presence of clinically significant cancer is equivocal)
- PI-RADS 4 – High (clinically significant cancer is likely to be present)
- PI-RADS 5 – Very high (clinically significant cancer is highly likely to be present

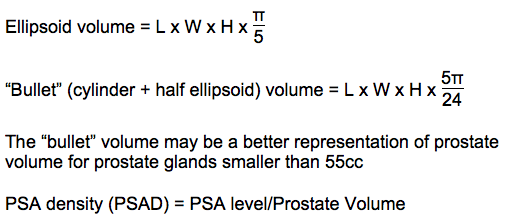

PIRAD PERSONAL PEARL: PSA density of > 0.2 ng/ml is suspicious, should consider biopsy irrespective of MR results, unless there has been prostatitis or instrumentation. Conversely, PSA density <0.1 ng/ml is usually benign.



Therefore if you are contemplating PI-RADS 3 (2 or 4) and PSA density is > 0.2ng/ml err on the side of PI-RADS 4. If PSA density is < 0.1 ng/ml err towards PI-RADS 2 and follow-up in one year.



PI-RADS 3 Pearl: A PI-RADS 3 upgraded to 4 using either DCE or ADC correlated with better clinical outcome than an initial PI-RADS 4, ie PI-RADS 3+1 is not equal to a 4

# **PI-RADS Assessment for T2W2**

| **Score** | **Peripheral Zone (PZ)** |
| --- | --- |
| 1 | Uniform hyperintense signal intensity (normal) |
| 2 | Linear or wedge-shaped hypointensity or diffuse mild hypointensity, usually indistinct margin |
| 3 | Heterogeneous signal intensity or non-circumscribed, rounded, moderate hypointensity Includes others that do not qualify as 2,4, or 5 |
| 4 | Circumscribed, homogeneous moderate hypointense focus/mass confined to prostate and <1.5cm in greatest dimension |
| 5 | Same as 4 but ≥ 1.5cm in greatest dimension or definite extra prostatic extension/invasive behavior |
| PEARL   | Extruded BPH nodules can mimic PZ lesions, known pitfall. |





| **Score** | **Transition Zone (TZ)** |
| --- | --- |
| 1 | Homogeneous intermediate signal intensity (normal) |
| 2 | Circumscribed hypointense or heterogeneous encapsulated nodule(s) (BPH) |
| 3 | Heterogeneous signal intensity with obscured margins Includes others that do not qualify as 2,4, or 5 |
| 4 | Lenticular or non-circumscribed, homogeneous, moderately hypointense, and <1.5 cm in greatest dimension |
| 5 | Same as 4, but ≥1.5cm in greatest dimension or definite extraprostatic extension/invasive behavior |



# **PI-RADS Assessment for DWI2**

| **Score** | **Peripheral Zone (PZ) or Transition Zone (TZ)** |
| --- | --- |
| 1 | No abnormality (i.e., normal) on ADC and high b‑value DWI |
| 2 | Indistinct hypointense on ADC |
| 3 | Focal mildly/moderately hypointense on ADC and isointense/mildly hyperintense on high b-value DWI |
| 4 | Focal markedly hypointense on ADC and markedly hyperintense on high b-value DWI; <1.5cm in greatest dimension |
| 5 | Same as 4 but ≥1.5cm in greatest dimension or definite extraprostatic extension/invasive behavior. |
| PEARL | T2 Blackout effect: lesions with very short T2 or T2* values create blackout phenomenon on T2, ADC and DWI. Tumors are not black, they are gray. T2 blackout can be due to paramagnetic effect. |
| PEARL | PZ in younger pt normally shows mild symmetrical restricted diffusion due to higher glandular density.   |



**Principle of Computed DWI – (Diffusion – weighted imaging)**

The computed DW imaging (cDWI) is a mathematical method in which b-value is calculated from two real DW images with different b-values.

The apparent diffusion coefficient (ADC) is calculated with the following equation:

ADC=In[-S/So]/(b-bo)

Using two real DWI signals in a monoexponential model, signals on arbitrarily set b-value are calculated with the following equation:

Sc=Soexp[-(bc-bo)ADC]

# **PI-RADS Assessment for DCE2**

| **Score** | **Peripheral Zone (PZ) or Transition Zone (TZ)** |
| --- | --- |
| (-) | No early enhancement, or diffuse enhancement not corresponding to a focal finding on T2 and / or DWI or focal enhancement corresponding to a lesion demonstrating features of BPH on T2WI |
| (+) | Focal, and; earlier than or contemporaneously with enhancement of adjacent normal prostatic tissues, and; corresponds to suspicious finding on T2W and / or DWI |
| PEARL | Prostatitis and BPH can show early enhancement and washout |

# **PI-RADS Assessment - Peripheral Zone**

| **DWI** | **T2W** | **DCE** | **PI-RADS** |
| --- | --- | --- | --- |
| 1 | Any | Any | 1 |
| 2 | Any | Any | 2 |
| 3 | Any | (-) (+) | 3 4 |
| 4 | Any | Any | 4 |
| 5 | Any | Any | 5 |

# **PI-RADS Assessment - Transition Zone**

| **DWI** | **T2W** | **DCE** | **PI-RADS** |
| --- | --- | --- | --- |
| 1 | Any | Any | 1 |
| 2 | Any | Any | 2 |
| 3 | ≤4 5 | Any Any | 3 4 |
| 4 | Any | Any | 4 |
| 5 | Any | Any | 5 |



PEARL 1: TZ cancers almost never develop posteriorly, usually anterior half and in the apical third. Caveat is the tumor in the anterior half is so big it extends into the posterior half



PEARL 2: . A good sign of benign TZ nodules are microcysts (discreet foci of T2 hyperintensity), this is correlated by pathologic histology and are dilated hyperplastic acini.



PEARL 3: Negative predictive value for MR prostate done well and read well is 90% for Gleason 3+4 and above, and more than 90% for 4+3 and above.



PEARL 4: AS & CZ zone lesions are a gray “difficult” area (sorry for the pun!). It is not clear which parameter to use but use ADC first and then early b value DCE to assess further



PEARL 5: TZ tumors tend to be lower grade, don't overcall TZ lesions. Look for excuse not to call a tumor in the TZ.



PEARL 6: DCE is useful in 10% of cases as a second line of defense in case of initially missed DWI or T2 lesion, Especially if DWI faisl from metal or post-focal radiation or other pitfalls like air in the rectum.





## Prostate: Examples



# **PI-RADS 1 - Example**

This 62-year-old male presents with prostate-specific antigen (PSA) of 6.44.

**![](https://info.medality.com/hs-fs/hubfs/image-23.png?width=270&name=image-23.png)**

**![](https://info.medality.com/hs-fs/hubfs/image-24.png?width=270&name=image-24.png)**















**Image 1 - Axial T2 FSE / TSE 2D                         Image 2 - Diffusion MRI b1500**

**(3mm)**

![](https://info.medality.com/hs-fs/hubfs/image-25.png?width=270&name=image-25.png)![](https://info.medality.com/hs-fs/hubfs/image-26.png?width=270&name=image-26.png)

**Image 3 - Parametric ADC Map                       Image 4 - DCE MRI Phase 5**

**(60 seconds post-injection)**

The prostate is 4.7cm in transverse dimension, 3.9cm in AP dimension, and 4.8cm in craniocaudal dimension. No areas of restricted diffusion or hypointensities in the peripheral zone. Generalized ill-defined non mass-like moderate hypointensity in the transitional zone. Small cystic nodule at the anterior right transitional zone. The capsule intact. Seminal vesicles and neurovascular bundles normal in appearance.

No lymphadenopathy in the pelvis. No focal abnormal signal intensity in the osseous structures. A 1.3 x 1.5 x 1cm fluid intensity abutting the anterior inferior left acetabulum probably is a paralabral cyst. Arthrosis of the pubic symphysis.

CONCLUSION:
No focal hypointense mass or areas of restricted diffusion, PI-RADS 1.



**[*Click here to launch this case*](http://cases.proscan.com/281282518053)**

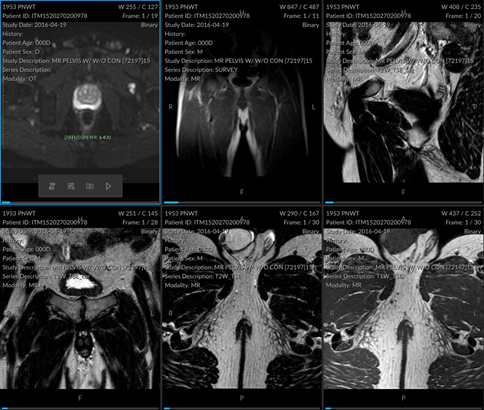

![](https://info.medality.com/hs-fs/hubfs/image-27.png?width=555&name=image-27.png)

![](https://info.medality.com/hs-fs/hubfs/image-28.png?width=532&name=image-28.png)



Follow this link for a video example of PI-RADS 1: [https://mrionline.proscan.com/courses/prostate/lectures/5173451](https://mrionline.proscan.com/courses/prostate/lectures/5173451)

*Make sure to check out the:*

***[Related Case](http://cases.proscan.com/281298242490)(PI-RADS 1)***



# **PI-RADS 2 - Example**

This 62-year-old male presents with elevated prostate-specific antigen (PSA) level measuring 8.3ng/mL.

![](https://info.medality.com/hs-fs/hubfs/image-29.png?width=260&name=image-29.png)

![](https://info.medality.com/hs-fs/hubfs/image-30.png?width=258&name=image-30.png)















**Image 1 - Axial T2                                                    ** **Image 2 - Axial**

**BPH, TZ hypertrophy (1mm)** **       **        **Parametric ADC map, TZ hypertrophy,**

**Contiguous, 3D TSE / FSE** **       **             **BPH, no low signal velocity restriction**

**particularly in PZ**

![](https://info.medality.com/hs-fs/hubfs/image-31.png?width=250&name=image-31.png)    ![](https://info.medality.com/hs-fs/hubfs/image-32.png?width=250&name=image-32.png)

****Image 3 - Axial DWI                    **                     **Image 4 - Axial DCE MRI with Gadolinium,** **

****Diffusion, b1600, TZ hypertrophy,      **             **8 seconds after injection, scattered TZ****

**BPH, No high signal diffusion** **       **                    **enhancement of low amplitude(arrows)**

**restriction in PZ**

The prostate gland measures 6cm in CC, 5cm in AP, and 6cm in RL dimensions. Calculated prostate volume is 94cc and PSA density is 0.09. Transitional zone hyperplasia is present. Stromal hyperplasia areas demonstrate mild to moderate diffusion restriction. No suspicious T2 hypointensity with substantive diffusion restriction to suggest malignant neoplastic process in the transitional zone. Peripheral zone demonstrates linear T2 hypointense scarring regions. Anatomical prostate capsule, bilateral neurovascular bundles, rectoprostatic angles and seminal vesicles are clear.

No lymphadenopathy in the pelvis or inguinal regions. Subcentimeter in diameter right external iliac chain lymph node is noted. Mild diverticular disease of the sigmoid colon without evidence of acute diverticulitis. Rectal wall is unremarkable. Visualized musculoskeletal structures are within normal limits. Urinary bladder is partially full and demonstrates mild wall thickening. No pseudo diverticula formation.

CONCLUSION:

1. PI-RADS 2; benign hyperplasia of the transitional zone.
2. Mild diverticular disease of the sigmoid colon without evidence of acute diverticulitis.
3. DWI images did not cover the whole prostate. Patient will be call back for complete DWI imaging.



Additional diffusion-weighted images through the prostate are obtained. No substantive diffusion-restricted, T2- hypointense region in the transitional or peripheral zone of the prostate gland to suggest malignant neoplastic process.



 **[*Click here to launch this case*](http://cases.proscan.com/281279262563)**

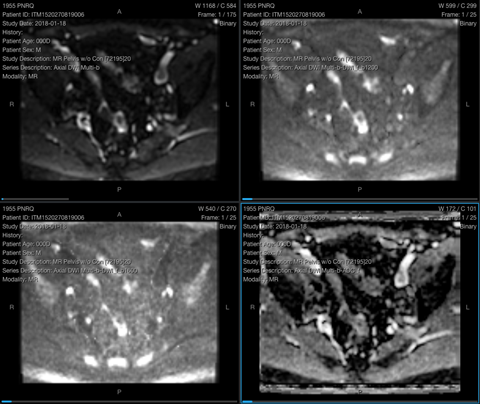

*![](https://info.medality.com/hubfs/image-33.png)*

![](https://info.medality.com/hs-fs/hubfs/image-34.png?width=536&name=image-34.png)



Follow this link for a video example of PI-RADS 2:             [https://mrionline.proscan.com/courses/prostate/lectures/5173461](https://mrionline.proscan.com/courses/prostate/lectures/5173461)

*Make sure to check out the:*

***[Related Case](http://cases.proscan.com/281479106039)(PI-RADS 2)***



# **PI-RADS 3 - Example**

This 72-year-old male presents with elevated prostate-specific antigen (PSA).

![](https://info.medality.com/hs-fs/hubfs/image-37.png?width=262&name=image-37.png)      ![](https://info.medality.com/hs-fs/hubfs/image-38.png?width=262&name=image-38.png)

 ** Image 1 - Axial DWI, b1600 (arrows)              Image 2 - Axial DWI (arrows)**

 ![](https://info.medality.com/hs-fs/hubfs/image-39.png?width=262&name=image-39.png)    ![](https://info.medality.com/hs-fs/hubfs/image-41.png?width=259&name=image-41.png)![](https://info.medality.com/hubfs/image-40.png)

** Image 3 - Axial T2 FSE / TSE (arrow)                    Image 4 - Axial TIGRE**

**                                                                            2D (3mm) DCE MRI Phase 1                                                                                       (10 seconds) ****No hypervascularity                                                                              in area of ****diffusion restriction in                                                                              left mid TZ**

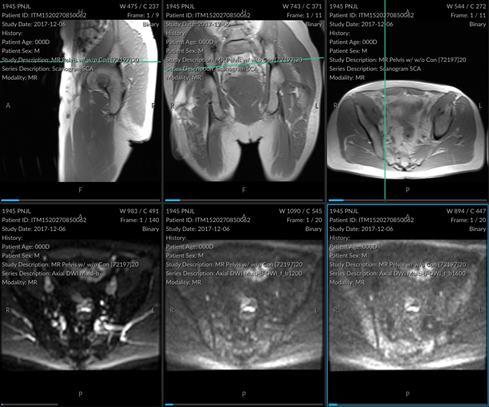

The prostate measures 7.6 x 6.0 x 7.1cm for an estimated volume, using the ellipsoid formula, of 169.4cc and tumor density of 0.062 ng/mL/cc which is at the lower end of the indeterminate risk range.

Peripheral Zone: Bilobed diffusion restricting signal abnormality within the right mid gland PZpa measuring 1.7 x 1.0cm with greater than a centimeter of capsular contact but no extracapsular extension. There is vascularity in this region but no corresponding T2 signal abnormality. PI-RADS 3.

Central Gland: Bilobed 10 x 7mm lesion in the central gland TZp mid prostate near the midline and a second area in the lateral aspect of the left midgland TZp on the same key image, this lateral lesion measuring 9 x 5mm. The vascularity is equivocal. No corresponding T2 lesion.

Normal rectoprostatic angles and neurovascular bundles. The left seminal vesicle is desiccated. The right is normal. Normal space of Retzius. Prostatomegaly protruding into the bladder trigone. Bladder wall thickening compatible with outlet obstruction. No lymphadenopathy or bone lesion.

** **

CONCLUSION:

1. PI-RADS 3:



***[Click here to launch this case](http://cases.proscan.com/281447954994)***

***![](https://info.medality.com/hs-fs/hubfs/image-42.png?width=565&name=image-42.png)***

**![](https://info.medality.com/hs-fs/hubfs/image-43.png?width=568&name=image-43.png)**



Follow this link for a video example of PI-RADS 3:            [https://mrionline.proscan.com/courses/prostate/lectures/5173478](https://mrionline.proscan.com/courses/prostate/lectures/5173478)







# **PI-RADS 4 - Example**

This 64-year-old male presents with increasing prostate-specific antigen (PSA) from 5.07 to 9.00 in seven months.

**![](https://info.medality.com/hs-fs/hubfs/image-44.png?width=280&name=image-44.png)**

**![](https://info.medality.com/hs-fs/hubfs/image-45.png?width=280&name=image-45.png)**

















**Image 1 - Axial T2 FSE / TSE (arrow)           Image 2 - Coronal T2 FSE / TSE (arrow)**

****(3mm) 2D, nodule left PZ pl (base)** **          (3mm) 2D, nodule left PZ pl (base)****

![](https://info.medality.com/hs-fs/hubfs/image-46.png?width=282&name=image-46.png)

****![](https://info.medality.com/hs-fs/hubfs/image-47.png?width=282&name=image-47.png)****



















**Image 3 - Axial DWI (arrow)                              Image 4 - Axial DWI (arrow)**



**Diffusion b-1600, hyperintense****                   ADC parametric map shows low**

**diffusion restriction left PZpl (base)                                signal velocity**

**restriction left PZpl (base)**

The prostate measures 3.5 x 3.5 x 4.6cm for an estimated volume, using the bullet formula, of 37cc and tumor density of 0.246ng/mL/cc which is in the high risk range.

Peripheral Zone: Diffusion restricting crescent T2 hypointensity in the left base measuring 1.0 x 0.6cm involving the entrance of the left seminal vesicle. No right-sided lesion in the peripheral zone.

Prostate utricle cyst.

Central Gland: CZ/TZ hypertrophy with bladder wall thickening compatible with outlet obstruction. Innumerable T2 hypointensities and patchy areas of diffusion restriction, too numerous to count, favored to reflect hyperplastic nodules without suspicious lesion.

Heterogeneous vascularity throughout the prostate. No lymphadenopathy or bone lesion. Colonic diverticulosis. Mild symphysis pubis arthrosis. Normal space of Retzius. Normal rectoprostatic angles.

**** ****

CONCLUSION:

1. PI-RADS 4:

**** ****



**[*Click here to launch this case*](http://cases.proscan.com/281449897312)**

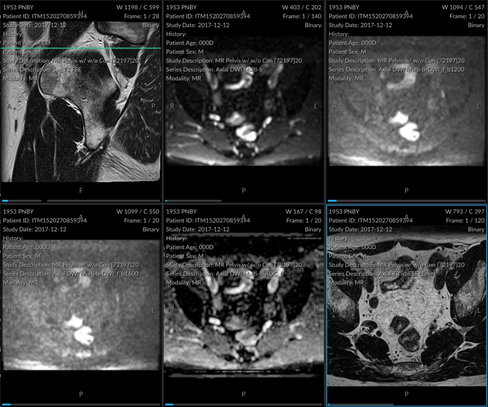

 ![](https://info.medality.com/hs-fs/hubfs/image-48.png?width=546&name=image-48.png)

![](https://info.medality.com/hs-fs/hubfs/image-49.png?width=532&name=image-49.png)



Follow this link for a video example of PI-RADS 4:            [https://mrionline.proscan.com/courses/prostate/lectures/5182284](https://mrionline.proscan.com/courses/prostate/lectures/5182284)

*Make sure to check out the:*

***[Related Case](http://cases.proscan.com/281484069777)(PI-RADS 4)***





# **PI-RADS 5 - Example**

This 63-year-old male presents with elevated prostate-specific antigen (PSA).



![](https://info.medality.com/hs-fs/hubfs/image-51.png?width=250&name=image-51.png)

![](https://info.medality.com/hs-fs/hubfs/image-50.png?width=250&name=image-50.png)

**(2.5mm) apex to base right                       hyperintensity right relative to left****Image 1 - Axial 2D T2 FSE / TSE                      Image 2 - Diffusion b-1600 (arrows)**

**isointense mass over 2cm                         gland consistent with diffusion**

**with extensivecapsular contact               restriction  more easily seen on **

**                                                                         ADC map  ****                                            **

**![](https://info.medality.com/hs-fs/hubfs/image-52.png?width=270&name=image-52.png)**

![](https://info.medality.com/hs-fs/hubfs/image-53.png?width=270&name=image-53.png)



** **















**Image 3 - ADC b-1600                                   Image 4 - DYN THRIVE(arrows) parametric map (arrows)**

**shows low signal right gland                 DCE MRI post contrast Phase 1**

**velocity restriction                                   (7 seconds) (4mm) with 50%                                                                                      overlap;**** pronounced enhancement                                                                        right gland**

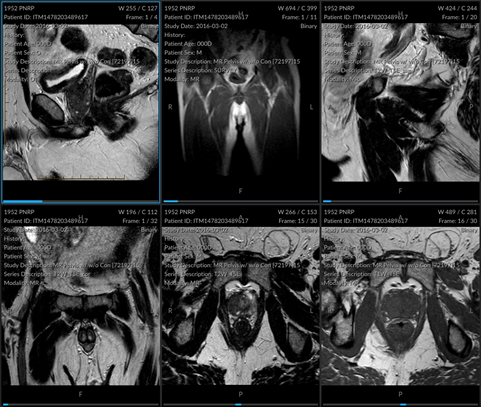

The prostate is 4.2cm in transverse dimension, 3.5cm in AP dimension and 3.5cm in craniocaudal dimension. A uniformly hypointense mass throughout the right hemisphere involving both the peripheral zone and central gland from apex through the base with probable areas of crossing midline. There is suggestion of extension to the base of the seminal vesicle. Subtle irregularity of the right side capsule probably represents transcapsular extension. The neurovascular bundle appears spared. Moderate restricted diffusion of the lesion with early and persistent enhancement. A fluid intensity posterior of midline probably is utricle cyst.

No direct invasion through the urinary bladder. No lymphadenopathy in the visualized pelvis. Bilateral small inguinal hernia with fat. Visualized osseous structures normal in signal intensity.

CONCLUSION:

1. Large mass replacing the right hemisphere of the prostate from apex to the base with suspicious invasion of the base of the right seminal vesicle and probable transcapsular extension, PI-RADS 5.
2. No evidence of lymphadenopathy in the visualized pelvis. No evidence of direct involvement of the neurovascular bundle.



**[*Click here to launch this case*](http://cases.proscan.com/281264773208)**

![](https://info.medality.com/hs-fs/hubfs/image-54.png?width=500&name=image-54.png)

**![](https://info.medality.com/hs-fs/hubfs/image-55.png?width=532&name=image-55.png)**



Follow this link for a video example of PI-RADS 5:           [https://mrionline.proscan.com/courses/prostate/lectures/5182285](https://mrionline.proscan.com/courses/prostate/lectures/5182285)







## Prostate: Surveillance

## **tion of prostate MRI from a urologic perspective**

Patient must qualify for surveillance by way of the Epstein Inclusion Criteria and Tiers of Assessment (i.e. Gleason, PSA, Tumor count).

### **EPSTEIN INCLUSION CRITERIA**

The Epstein Inclusion Criteria was developed in 1994 for the purpose of assessing prostate cancer significance.

Insignificant prostate cancer was defined as having a tumor volume less than 0.2cm3, organ-confined, and no Gleason patterns 4 or 5. Being characterized as a ‘minimal tumor’ implied that the tumor volume was 0.2-0.5cm3. Oon

As originally defined by Epstein in the validation studies, the optimum preoperative criteria were:

- PSA density must be less than 0.1ng/mL
- Gleason score must be less than 7
- Number of cores positive for tumor must be less than 3
- Volume of core positive for tumor must be 50% or less
- Must be clinically organ-confined Oon

### **TIERS OF ASSESSMENT FOR SURVEILLANCE**

#### **Gleason**

##### **Correlating ADC and Gleason Score**

Example of a study showing Apparent Diffusion Coefficient (ADC) values and their Gleason Score Correlation (more studies are still needed to validate)

| **Gleason Score** | **Number of Tumors** | **Least-Squares Mean** | **Standard Error of Mean** | **Range -** **ADC** **(x10****-3**** mm****2****/s)** |
| --- | --- | --- | --- | --- |
| 6 | 25 | 0.860 | 0.036 | 0.659-1.263 |
| 7 | 37 | 0.702 | 0.030 | 0.108-0.963 |
| 8 | 10 | 0.672 | 0.057 | 0.417-0.875 |
| 9 | 9 | 0.686 | 0.067 | 0.534-0.848 |

##### **Gleason Classification or Scale**

*Pathology - Malignant Neoplasms*

| Grade 1 | Tumor composed of well-defined individual glandular nodules, closely arranged, uniform and separate from each other |
| --- | --- |
| Grade 2 | Tumor still relatively well defined, but with possible minimal extension of the neoplastic acini to the periphery of the tumor nodule in the noncancerous prostatic tissue |
| Grade 3 | Tumor infiltrates the noncancerous prostatic tissue; the gland shows marked variation in size and organization |
| Grade 4 | Markedly atypical cells with extensive infiltration into surrounding tissues |
| Grade 5 | Tumor presents no glandular differentiation; composed of sheets of undifferentiated cancer cells |

### ![](https://info.medality.com/hubfs/image-56.png)



The score is defined by the combination of the primary predominant grade, and the secondary grade.  Its range is potentially from 2 (1+1) to 10 (5+5). A score of 2 to 4 in biopsies is rare: these are generally lesions present in the transition zone which are sampled during transurethral resection of the prostate (TURP). The Gleason grade is reported for each individual biopsy sample, and the biopsy with the highest grade is considered representative of the Gleason score of the patient. Patients can have a well-differentiated tumor (Gleason score 2 to 4), moderately differentiated (5 to 7), or poorly differentiated (8 to 10).  However, it should be borne in mind that a Gleason score of 4+3=7 is different from 3+4=7, because, although the sum is the same, in reality the first case has a higher primary grade. In other words, the Gleason 4 is in more samples or “chips” than the Gleason 3 in the 4+3=7 scenario. Therefore, this is a more serious scenario than the 3+4=7.

In addition to the primary and the secondary grades, the tumor also shows a tertiary grade which is higher than the other two. Despite being less represented, this tertiary grade needs to be included (and added to the primary grade) in the Gleason score since a small focus of high-grade carcinoma present in the biopsy may correlate with a significant presence throughout the entire prostate, thus influencing prognosis. Therefore, 3+4+5=8 and not 7, and 2+3+4=6 and not 5. You take the highest and lowest numbers and add them together.

The application of the Gleason score is unreliable in the evaluation of tumors which have been subject to neoadjuvant hormone therapy or radiotherapy.  In these cases it is better to refer to the pretreatment Gleason biopsy.



#### **PSA Assay**

##### **Story**

As PCA3 testing has not become a part of routine clinical practice, PSA (glycoprotein produced mainly by the prostate) can currently be considered the only marker used on a routine basis in patients with prostate disease. PSA is however nonspecific, since it can be elevated in the presence not only of malignant lesions, but also of benign ones (e.g. hyperplasia, acute inflammation, infarction, urinary retention), as well as after several diagnostic procedures such as digital rectal examination (DRE), cystoscopy, and prostatic biopsy. In the latter case, increases of up to 50 times may be observed with a slow return to normal values in 30 to 60 days.  Therefore, when we want to evaluate therapy-induced changes in PSA, the assay should be done prior to DRE, TRUS, and instrumental procedures in the rectum and colon (e.g. rectoscopy or colonoscopy). In addition, a period of four weeks should pass after prostatic biopsy if the measured serum PSA is to be considered reliable. On the other hand, PSA levels in the bloodstream can decrease following the use of several drugs utilized in the treatment of benign prostatic hyperplasia (BPH). The PSA drops in men who use minoxidil for hair growth. Considering the prevalence of prostate cancer in the population affected by BPH, a drug-induced reduction in PSA can compromise the diagnostic utility of the marker in the presence of malignant tumor. Therefore, to exclude the concomitant presence of the latter, the following is advisable:



- Baseline measurement prior to the beginning of treatment
- Successive six-monthly monitoring
- Further diagnostic procedures if any decrease in PSA >50% is not observed or if PSA levels rise over time



PSA is generally evaluated with reference to a threshold value calculated on the basis of the distribution of the marker in normal subjects. The threshold value used is 4 ng/mL, although this value may be considered conventional since it is characterized by low positive and negative predictive values. This is due to several reasons including patient age (PSA tends to increase in the elderly), and the overlap between patients with neoplasm confined to the prostate and patients with BPH who present values ranging from 4 to 10 ng/mL.

##### **Positive biopsy for prostate cancer correlation**

The possibility of a positive biopsy for prostate cancer can be correlated with tPSA values. The probability of carcinoma in patients with tPSA of 0.0-4.0 ng/mL is 10%, and in 90% of cases the tumor is confined to the prostate. With a tPSA of 4.0-10.0 ng/mL the probability of carcinoma is 25% with the tumor confined to the prostate in 70% of cases. With a tPSA >10.0 ng/mL the probability of carcinoma is 50%, with the tumor confined to the prostate in 50% of cases.

##### **Age-adjusted PSA**

Adjusting the PSA value on the basis of patient age has been introduced to improve the sensitivity of the marker in young subjects and the specificity in the elderly. The correlation of PSA values by age does not guarantee an acceptable increase in sensitivity and specificity.

##### **PSA Ratio**

Serum PSA exists in various forms, even though most of it is in complex with protease inhibitors such as alpha 1-antichymotrypsin, and only a small amount is present in the free form. The ratio between free PSA (fPSA) and total PSA (tPSA) is defined PSA ratio.  The percentage of fPSA is lower in subjects with prostate cancer. Therefore, the percentage of fPSA can be useful in determining which patients should undergo prostatic biopsy. It has been demonstrated that the percentage of fPSA can increase the specificity of tPSA in subjects with a tPSA between 2.5 and 10 ng/mL. The sensitivity and specificity of the percentage of fPSA are independent of the age of the subject undergoing the examination.

##### **PSA Velocity and PSA Doubling Time**

PSA velocity measures the changes in PSA over one year, thus making possible a longitudinal evaluation of serum PSA levels. In the first half of the 1990s, the concept was introduced that an increase in tPSA greater than 0.75 ng/mL per year is suggestive of carcinoma.

PSA doubling time measures the rate of change in a different manner, using a logarithmic formula to calculate the time it takes for PSA to double in value. The formula is:



log (2xt) divided by log (final PSA) - log (initial PSA).



PSA doubling time is expressed in months.

##### **PSA Density**

PSA density refers to the tPSA divided by the prostate volume expressed in cubic centimeters (cc). The calculation can be made in terms of the total prostate volume (PSA density), or in the terms of the volume of the transition zone, the site of BPH (PSA transition zone density).

Normally, in subjects with a tPSA between 4 and 10 ng/mL a normal PSA density value is 0.15.

##### **cPSA**

Currently it is possible to assay PSA in complex with alpha 1-antichymotrypsin (cPSA).

##### ** ****Formulas for Calculating Prostate Volume**

![](https://info.medality.com/hs-fs/hubfs/image-57.png?width=508&name=image-57.png)

#### ** **

### **ACTIVE SURVEILLANCE**

- Leads to less frequent biopsies and unnecessary prostatectomies
- Provides guidance for biopsy technique when matched with TRUS

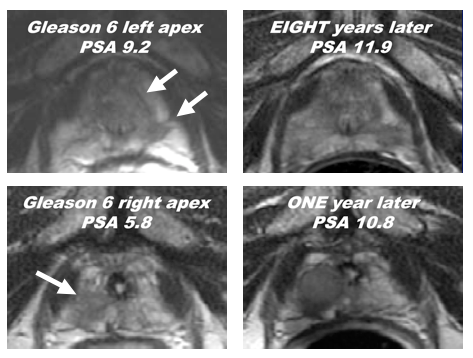

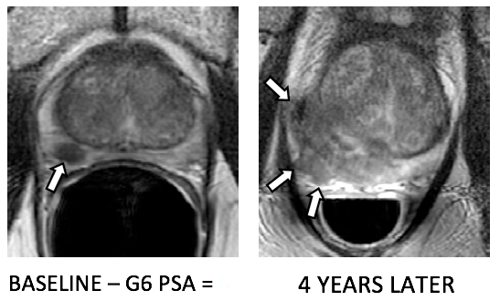

- MRI usually ordered six months post-biopsy (if negative), then annually (if elevated PSA)
- Wait at least eight weeks after positive biopsy for MRI (due to hemorrhage)
- Greatest value of MRI is in excluding high grade Gleason 7, 8, 9, and 10 carcinomas
- Second greatest value is in evaluating high risk morphologies for capsular and extracapsular spread

![](https://info.medality.com/hs-fs/hubfs/image-58.png?width=507&name=image-58.png)![](https://info.medality.com/hs-fs/hubfs/image-59.png?width=500&name=image-59.png)



![](https://info.medality.com/hs-fs/hubfs/image-60.png?width=494&name=image-60.png)

### **SURGICAL PLANNING**

- MRI aids in decision making for nerve sparing:
- Capsular abutment (2cm or more) and / or direct infiltration seen on high resolution MRI consistent with capsular INVASION (82% likely)
- Lymph node dissection

### **MRI AIDS IN TIMING OF SURVEILLANCE BIOPSIES**

- For patients with low risk disease
- MRI obtained at four to six months post initial biopsy
- Non-concerning MRI, can use PSA velocity, and exam: Repeat biopsies may be extended to 24 months or longer
- Concerning MRI, PSA, or exam: Biopsy indicated for restaging

### **MRI AIDS IN PLANNING BIOPSY TECHNIQUE**

- If a concerning lesion on MRI is difficult to sample transrectally, then may get transperineal biopsy
- Can attempt to target area of lesion on biopsy (via “cognitive fusion” or MRI / ultrasound digital fusion)

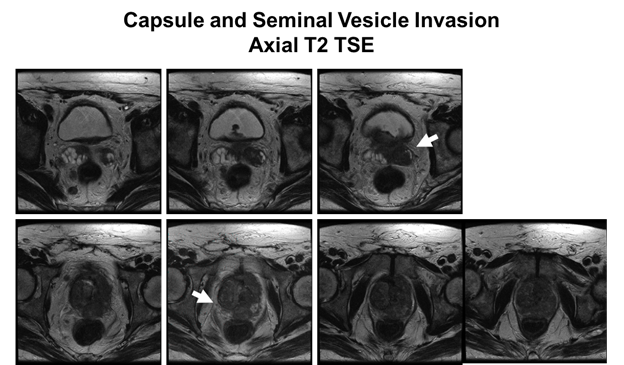

### **DIAGNOSIS OF EXTRACAPSULAR EXTENSION**

Imaging findings suggesting extraprostatic extension:

- Soft tissue tumor growing over the capsule
- Capsular bulging or irregularity
- Broad capsular contact
- Filling in of the rectoprostatic angle, posterolaterally on T1WI (e.g. loss of fat planes)
- Asymmetry or invasion of the neurovascular bundles

![](https://info.medality.com/hubfs/image-61.png)



![](https://info.medality.com/hs-fs/hubfs/image-62.png?width=481&name=image-62.png)

- Capsular contact for predicting extracapsular extension
- >2 cm: an accuracy of 82%
- <1 cm: the chance of extracapsular extension was 5%

**MRI Findings in T3 Disease with Capsular Signs of Involvement****
***Radiology 1997; 202: 697-702 and 2005; 237: 541-549***
**Abbreviations: RP = Rectoprostatic angle; NVB = Neurovascular Bundle



![](https://info.medality.com/hubfs/image-63.png)



**T-stage of TNM classification for prostate cancer**

| TX | Primary tumor cannot be assessed |
| --- | --- |
| T0 | No evidence of primary tumor |
| T1 | Clinically inapparent tumor neither palpable nor visible by imaging |
| T1a | Tumor incidental histologic finding in 5% or less, or tissue resected |
| T1b | Tumor incidental histologic finding in more than 5% of tissue resected |
| T1c | Tumor identified by needle biopsy (e.g. because of elevated PSA) |
| T2 | Tumor confined within prostate |
| T2a | Tumor involves one-half of one lobe or less |
| T2b | Tumor involves more than one-half of one lobe but not both lobes |
| T2c | Tumor involves both lobes |
| T3 | Tumor extends through the prostate capsule |
| T3a | Extracapsular extension (unilateral or bilateral) |
| T3b | Tumor invades seminal vesicle(s) |
| T4 | Tumor is fixed or invades adjacent structures other than seminal vesicles, such as external sphincter, rectum, bladder, levator muscles, and / or pelvis wall |







## Modalities other than MRI

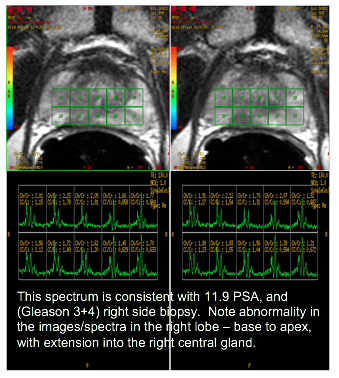

## **MR Spectroscopy**

The rationale behind the use of magnetic resonance spectroscopy (MRS) is provided by the demonstration of elevated levels of choline and low levels of citrate in the carcinoma. This is the opposite of normal prostate tissue where the concentration of citrate is high and choline is low.  The low concentrations of citrate in the tumor are the result of changes in cellular function and tissue architecture. In fact, the neoplastic cells are less able to synthesize citrate, and the normal glandular epithelium is substituted by the newly formed tissue. High concentrations of choline, which is a component of the cellular membranes, are found in carcinoma of the prostate due to the irregular multiplication of the tumor membranes.

The presence of cancer is hypothesized when the ratio (>0.75) of (Cho+Cr)/Cit in the suspicious zone deviates by more than 2 to 3 standard deviations (SD) with respect to the value obtained in the healthy reference zone. A ratio (>0.86) of (Cho+Cr)/Cit greater than 3 SD with respect to the value of the normal zone is defined as the definite presence of neoplasia. The voxels with a ratio less than 0.75 are defined as normal tissue of the peripheral zone.

A marked reduction to the point of absence of the citrate peak has been observed in cases of high-grade Gleason tumors and a smaller reduction in the peak in low-grade Gleason tumors.

The Key Peaks: Citrate, Creatine, and Choline



- Normal Peripheral Zone and Hyperplastic Central Zone of the Prostate Contain Citrate
- Low Citrate Occurs in Prostate Cancer due to Conversion from Citrate Producing to Citrate Oxidizing
- Elevated Choline due to High Phospholipid Cell Membrane Turnover in Proliferating C
  ells in Prostate Cancer



![](https://info.medality.com/hs-fs/hubfs/image-64.png?width=532&name=image-64.png)



![](https://info.medality.com/hs-fs/hubfs/image-65.png?width=394&name=image-65.png)

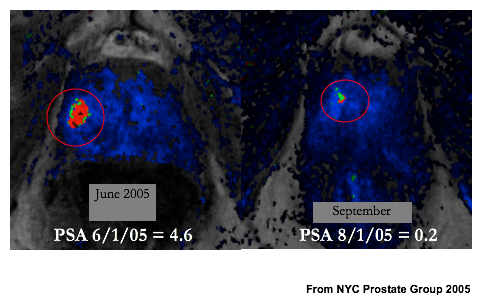

**Disease monitoring by MRI/MRSI (e.g. Spectroscopy)**

![](https://info.medality.com/hs-fs/hubfs/image-66.png?width=604&name=image-66.png)

## **Bone Scintigraphy**

A positive scintigraphy is highly uncommon with PSA levels below 20 ng/mL. The examination is therefore indicated in patients with:

- PSA >20 ng/mL
- Clinically staged disease ≥T3
- A primary Gleason ≥4
- Gleason score ≥8 and PSA >10 ng/mL



*Whole body bone scan - example*

![](https://info.medality.com/hubfs/image-67.png)

*Scintigraphy and Bone Scan Positivity*

| **PSA Level** | **Positive bone scan** |  |  |
| --- | --- | --- | --- |
| < 10 | **0% (0/290)** | **0% (0/71)** | **0% (0/161)** |
| 10-20 | 4.5% (4/88) | 1.6% (1/61) | 2.1% (2/95) |
| > 20 | 21% (24/112) | 41% (34/82) | - |

*Gleave et al, Urology 1996; 47: 708-12 Rhoden et al, Int Braz J Urol 2003; 29: 121-125 Hirobe et al, Jpn J Clin Oncol 2007*

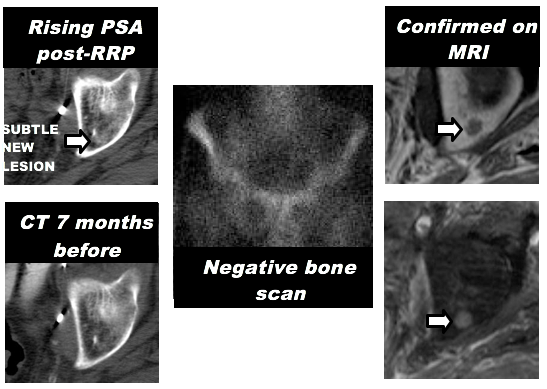

*Negative Bone Scintigraphy, Positive CT and MRI*

![](https://info.medality.com/hs-fs/hubfs/image-68.png?width=586&name=image-68.png)



## **Fluoride Positron Emission Tomography (fPET)**

**Pearls**

- 18F PET “Fluoride PET” more sensitive than Tech 99m bone scintigraphy
- 80% of Stage IV Disease is Bone positive only

![](https://info.medality.com/hs-fs/hubfs/image-69.png?width=248&name=image-69.png)

## **Computed Tomography (CT)**

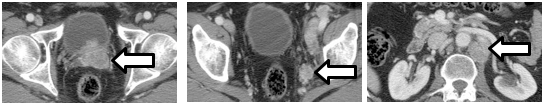

**CT and Nodal/ Disease Positivity in New Untreated Patients**
*Huncharek et al, Cancer Invest 1995;13: 31-5 Lee et al. Urology 1999; 54: 490-4**
**Huncharek et al. Abdom Imaging 1996; 21: 364-7*

![](https://info.medality.com/hs-fs/hubfs/image-70.png?width=644&name=image-70.png)

| N | Positive CT | PSA cut-off |
| --- | --- | --- |
| 300 | 10 (3%) | > 20 in 8 |
| 588 | 41 (7%) | > 15 in 33 |
| 425 | 13 (3%) | > 30 in 11 |

**Comparison of Sonography, MRI and Pathology with Peripepheral Zone Tumor (arrow)**

![](https://info.medality.com/hs-fs/hubfs/image-71.png?width=607&name=image-71.png)

## **Transrectal Urethral Ultrasound (TRUS)**

**TRUS with Peripheral Zone tumor (arrow)**

![](https://info.medality.com/hs-fs/hubfs/image-72.png?width=298&name=image-72.png)







## Prostate: References



Choi YJ, Kim JK, Kim N et al (2007) Functional MR imaging of prostate cancer.  RadioGraphics 27:63-75

Choyke PL (2006) Prostate cancer imaging: past, present, future.  RSNA categorical course in diagnostic radiology. Genitourinary Radiology, pp 35-41

Clase FG, Hricak H, Hattery RR (2004) Pretreatment evaluation of prostate cancer: role of MR imaging and 1H MR spectroscopy.  Radiographics 24:S167-180



Fuchsjäger M, Shukla-Dave A, Akin O et al (2008) Prostate cancer imaging.  Acta Radiol 49:107-120



Hambrock T, Padhani AP, Tofts PS et al (2006) Dynamic contrast-enhanced MR imaging in the diagnosis and management of prostate cancer.  RSNA categorical course in diagnostic radiology. Genitourinary Radiology, pp 61-77

Hricak H, Choyke PL, Eberhardt SC (2007) Imaging prostate cancer:  A multidisciplinary perspective. Radiology 243:28-53

Oon SF, Watson RW, O’Leary JJ, and Fitzpatrick JM (2011) Epstein criteria for insignificant prostate cancer. BJU International 108:518-525



Presti JC Jr (2000) Prostate cancer:  assessment of risk using digital rectal examination, tumor grade, prostate-specific antigen, and systematic biopsy.  Radiol Clin North Am 38:49-58

Shukla-Dave A, Hricak H (2006) MR spectroscopy of prostate cancer:  current practices ad techniques. RSNA categorical course in diagnostic radiology.  Genitourinary Radiology, pp 53-60



Standring, S (2005) Gray’s Anatomy: The Anatomical Basis of Clinical Practice, 39th Edition. Prostate, pp. 1,301-1,304

Yu KK, Hricak H (2000) Imaging prostate cancer.  Radiol Clin North Am 38:59-85

## **Table of Contents**

[Imaging](https://info.medality.com/prostate-mri-guide#Prostate:%20Imaging)

[Anatomy](https://info.medality.com/prostate-mri-guide#Prostate:%20Anatomy)

[Scoring](https://info.medality.com/prostate-mri-guide#Prostate:%20Scoring)

[Assessment](https://info.medality.com/prostate-mri-guide#Prostate:%20Assessment)

[Examples](https://info.medality.com/prostate-mri-guide#Prostate:%20Examples)

[Surveillance](https://info.medality.com/prostate-mri-guide#Prostate:%20Surveillance)

[Modalities other than MRI](https://info.medality.com/prostate-mri-guide#Modalities%20other%20than%20MRI)

[References](https://info.medality.com/prostate-mri-guide#Prostate:%20References)

## Table of Contents

1. But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and expound the actual teachings of the great explorer of the truth, the master-builder of human happiness. No one rejects, dislikes, or avoids pleasure itself.
2. But who has any right to find fault with a man who chooses to enjoy a pleasure that has no annoying consequences, or one who avoids a pain that produces no resultant pleasure?
3. Nor again is there anyone who loves or pursues or desires to obtain pain of itself, because it is pain, but because occasionally circumstances occur in which toil and pain can procure him some great pleasure. To take a trivial example, which of us ever undertakes laborious physical exercise, except to obtain some advantage from it?
4. But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and expound the actual teachings of the great explorer of the truth, the master-builder of human happiness. No one rejects, dislikes, or avoids pleasure itself.
5. To take a trivial example, which of us ever undertakes laborious physical exercise.
6. On the other hand, we denounce with righteous indignation and dislike men.
7. In hac habitasse platea dictumst. Curabitur viverra lectus et diam molestie cursus.
8. Nor again is there anyone who loves or pursues or desires to obtain pain of itself, because it is pain, but because occasionally circumstances occur in which toil and pain can procure him some great pleasure. To take a trivial example, which of us ever undertakes laborious physical exercise, except to obtain some advantage from it?
9. But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and expound the actual teachings of the great explorer of the truth, the master-builder of human happiness. No one rejects, dislikes, or avoids pleasure itself.
10. To take a trivial example, which of us ever undertakes laborious physical exercise.
11. On the other hand, we denounce with righteous indignation and dislike men.
12. In hac habitasse platea dictumst. Curabitur viverra lectus et diam molestie cursus.
13. Nor again is there anyone who loves or pursues or desires to obtain pain of itself, because it is pain, but because occasionally circumstances occur in which toil and pain can procure him some great pleasure. To take a trivial example, which of us ever undertakes laborious physical exercise, except to obtain some advantage from it?
14. But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and expound the actual teachings of the great explorer of the truth, the master-builder of human happiness. No one rejects, dislikes, or avoids pleasure itself.
15. To take a trivial example, which of us ever undertakes laborious physical exercise.
16. On the other hand, we denounce with righteous indignation and dislike men.
17. In hac habitasse platea dictumst. Curabitur viverra lectus et diam molestie cursus.
18. Nor again is there anyone who loves or pursues or desires to obtain pain of itself, because it is pain, but because occasionally circumstances occur in which toil and pain can procure him some great pleasure. To take a trivial example, which of us ever undertakes laborious physical exercise, except to obtain some advantage from it?

[![Save Big on Memberships and Remote Fellowships for a Limited Time](https://no-cache.hubspot.com/cta/default/4177793/70c46fe6-360c-409d-afeb-8d1a7e68cee4.png)](https://cta-redirect.hubspot.com/cta/redirect/4177793/70c46fe6-360c-409d-afeb-8d1a7e68cee4) [![See Deals ](https://no-cache.hubspot.com/cta/default/4177793/82b793d1-316a-4138-b1b6-bb81958739c5.png)](https://cta-redirect.hubspot.com/cta/redirect/4177793/82b793d1-316a-4138-b1b6-bb81958739c5)

- [**](https://www.facebook.com/proscaneducation/)

New MRI Cases Sent Weekly

### About Us

We're on a mission to bring the best online MRI education to the world's radiologists

### Office

5400 Kennedy Ave. Cincinnati, OH 45202

### Contact Us

M-F 8AM-5PM EST

+1 866-MRI-EDUC (866-674-3382)

support@medality.com

### Latest Cases to Review

© 2018 [Medality / MRI Online](https://medality.com/)

[Terms of Use](https://medality.com/terms/) | [Privacy Policy](https://medality.com/privacy-policy/)

**

 google-site-verification=ecoazcFTJuw2sjsuFaHY5TQ03ZyOnJrReauQoQP4DBI
